Diameter |
M8 x 1 |
M10 x 1.25 |
M12 x 1.25 |
M14 x 1.5 |
k |
5.3 |
6.4 |
7.5 |
8.8 |
s |
13 |
17 |
19 |
22 |
e |
14.38 |
18.9 |
21.1 |
24.49 |
b up to 125 |
22 |
26 |
30 |
34 |
b up to 150 |
28 |
32 |
36 |
40 |
Diameter |
M16 x 1.5 |
M18 x 1.5 |
M20 x 1.5 |
M22 x 1.5 |
k |
10 |
11.5 |
12.5 |
14 |
s |
24 |
27 |
30 |
32 |
e |
26.75 |
30.14 |
33.53 |
35.72 |
b up to 125 |
38 |
42 |
46 |
50 |
b up to 200 |
44 |
48 |
52 |
56 |
Diameter |
M24 x 2 |
M27x2 |
M30x2 |
M36x3 |
k |
15 |
17 |
18.7 |
22.5 |
s |
36 |
41 |
46 |
55 |
e |
39.98 |
45.2 |
50.85 |
60.79 |
b up to 125 |
54 |
60 |
66 |
78 |
b up to 200 |
60 |
66 |
72 |
84 |
b over 200 |
- |
79 |
85 |
97 |

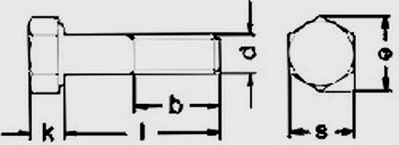

DIN 960 - Hex Cap
Screws, Metric Fine Thread - Part Thread
|
|
|
|
