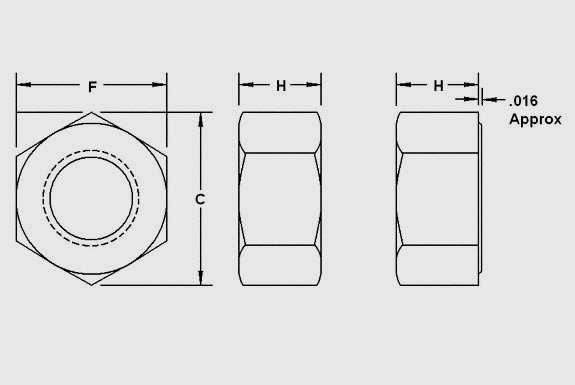

HEAVY HEX NUTS |
|
SIZE |
F |
G |
H |
|
Width Across Flats |
Width Across Corners |
Thickness Heavy Hex Nuts |
|
Max |
Min |
Max |
Min |
Max |
Min |
|
1/4" |
12,70 |
12,40 |
14,66 |
14,12 |
6,35 |
5,54 |
|
5/16" |
1427 |
13,87 |
16,51 |
15,80 |
7,98 |
7,11 |
|
3/8" |
17,48 |
16,99 |
20,17 |
19,38 |
9,58 |
8,66 |
|
7/16" |
19,05 |
18,49 |
22,00 |
21,08 |
11,20 |
10,24 |
|
1/2" |
22,23 |
21,59 |
25,65 |
24,61 |
12,80 |
11,79 |
|
9/16" |
23,83 |
23,09 |
27,51 |
26,34 |
14,43 |
13,36 |
|
5/8" |
26,97 |
26,09 |
31,17 |
29,85 |
16,03 |
14,91 |
|
3/4" |
31,75 |
30,78 |
36,65 |
35,10 |
19,25 |
18,03 |
|
7/8" |
36,53 |
35,41 |
42,16 |
40,36 |
22,48 |
21,16 |
|
1" |
41,28 |
40,01 |
47,65 |
45,62 |
25,70 |
24,26 |
|
1 1/8" |
46,02 |
44,60 |
53,16 |
50,88 |
28,93 |
27,41 |
|
1 1/4" |
50,80 |
49,23 |
58,65 |
56,11 |
31,78 |
30,15 |
|
1 3/8" |
55,58 |
53,42 |
64,16 |
61,37 |
35,00 |
33,27 |
|
1 1/2" |
60,33 |
58,42 |
69,65 |
66,60 |
38,23 |
36,40 |
|
1 5/8" |
65,07 |
63,02 |
75,16 |
71,83 |
41,45 |
39,52 |
|
1 3/4" |
69,85 |
67,61 |
80,65 |
77,09 |
44,68 |
42,65 |
|
1 7/8" |
74,63 |
72,24 |
86,16 |
82,35 |
47,90 |
45,77 |
|
2" |
79,38 |
76,84 |
91,64 |
87,60 |
51,13 |
48,91 |
|
2 1/4" |
88,90 |
86,06 |
102,64 |
98,09 |
57,18 |
54,74 |
|
2 1/2" |
98,43 |
95,25 |
113,64 |
108,59 |
63,63 |
60,99 |
|
2 3/4" |
107,95 |
104,44 |
120,64 |
119,08 |
70,03 |
67,23 |
|
3" |
117,48 |
113,67 |
135,64 |
129,59 |
76,53 |
73,48 |
|
3 1/4" |
127,00 |
122,89 |
146,66 |
140,08 |
82,60 |
79,35 |
|
3 1/2" |
136,53 |
132,08 |
157,66 |
150,57 |
89,05 |
85,60 |
|
3 3/4" |
146,05 |
141,27 |
168,66 |
161,06 |
89,50 |
91,85 |
|
4" |
155,58 |
150,50 |
179,66 |
171,58 |
101,96 |
98,09 |
ASME/ANSI B18.2.2
 |
|
|
|
 |
