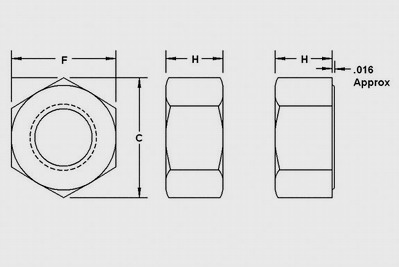

Nominal Size

F

C

H

Width Across Flats

Width Across Corners

Thickness

Basic

Max

Min

Max

Min

Basic

Max

Min

3/8

9/16

0.562

0.551

0.650

0.628

21/64

0.337

0.320

1/2

3/4

0.750

0.736

0.866

0.840

7/16

0.448

0.427

5/8

15/16

0.938

0.922

1.083

1.051

35/64

0.559

0.535

3/4

1-1/8

1.125

1.088

1.299

1.240

41/64

0.665

0.617

7/8

1-5/16

1.312

1.269

1.516

1.447

3/4

0.776

0.724

1

1-1/2

1.500

1.450

1.732

1.653

55/64

0.887

0.831

1-1/8

1-11/16

1.688

1.631

1.949

1.859

31/32

0.999

0.939

1-1/4

1-7/8

1.875

1.812

2.165

2.066

1-1/16

1.094

1.030

1-3/8

2-1/16

2.062

1.994

2.382

2.273

1-11/64

1.206

1.138

1-1/2

2-1/4

2.250

2.175

2.598

2.480

1-9/32

1.317

1.245

Dimensions per ASME B18.2.2 1987 (1999)

Hex Nuts

Hex Bolts
