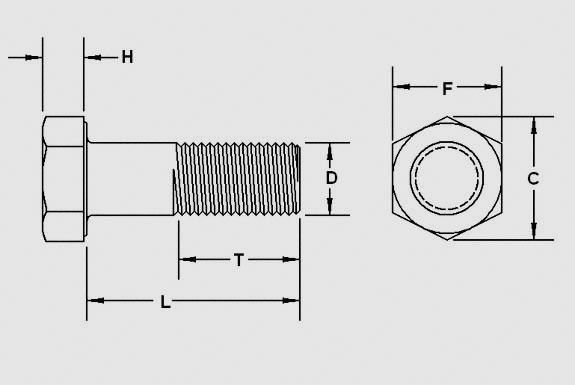

STRUCTURAL BOLTS |
|
Bolt Diameter |
D |
F |
C |
H |
T |
|
Body Diameter |
Width Across Flats |
Width Across Corners |
Height |
Thread |
|
Length |
|
Max |
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
Basic |
|
1/2" |
0.515 |
7/8 |
0.875 |
0.850 |
1.010 |
0.969 |
5/16 |
0.323 |
0.302 |
1.00 |
|
5/8" |
0.642 |
1-1/16 |
1.062 |
1.031 |
1.227 |
1.175 |
25/64 |
0.403 |
0.378 |
1.25 |
|
3/4" |
0.768 |
1-1/4 |
1.250 |
1.212 |
1.443 |
1.383 |
15/32 |
0.483 |
0.455 |
1.38 |
|
7/8" |
0.895 |
1-7/16 |
1.438 |
1.394 |
1.660 |
1.589 |
35/64 |
0.563 |
0.531 |
1.50 |
|
1" |
1.022 |
1-5/8 |
1.625 |
1.575 |
1.876 |
1.796 |
39/64 |
0.627 |
0.591 |
1.75 |
|
1 1/8" |
1.149 |
1-13/16 |
1.812 |
1.756 |
2.093 |
2.002 |
11/16 |
0.718 |
0.658 |
2.00 |
|
1 1/4" |
1.277 |
2 |
2.000 |
1.938 |
2.309 |
2.209 |
25/32 |
0.813 |
0.749 |
2.00 |
|
1 3/8" |
1.404 |
2-3/16 |
2.188 |
2.119 |
2.526 |
2.416 |
27/32 |
0.878 |
0.810 |
2.25 |
|
1 1/2" |
1.531 |
2-3/8 |
2.375 |
2.300 |
2.742 |
2.622 |
15/16 |
0.974 |
0.902 |
2.25 |
ASME B18.2.6 2003
 |
|
|
|
 |
